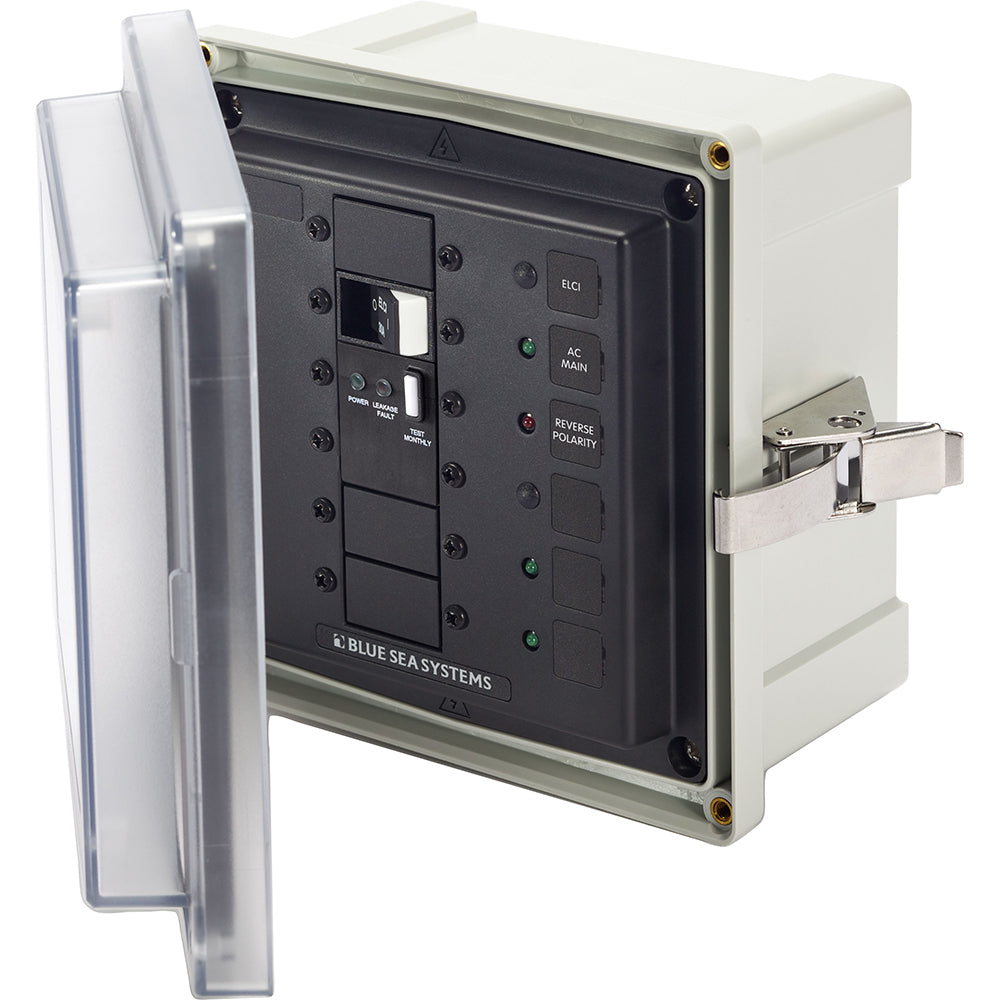

3118 - SMS Panel Enclosure with ELCI (50A) and 2 Blanks  - 120V AC

The 3118 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Technical Specifications:

  • Circuit Breaker Type - 1 x ELCI Main  (50A) 120V and 2 x Blanks
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 3 x Green ON (120V AC)

In the Box:

  • 3118 Enclosure
  • Glands x 5
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual
