Lenco 9" x 9" Standard Performance Trim Tab Kit w/o Switch Kit 12V [15034-101]
Unit price/ per
9" x 9" Standard Performance Trim Tab Kit w/o Switch Kit- 12V

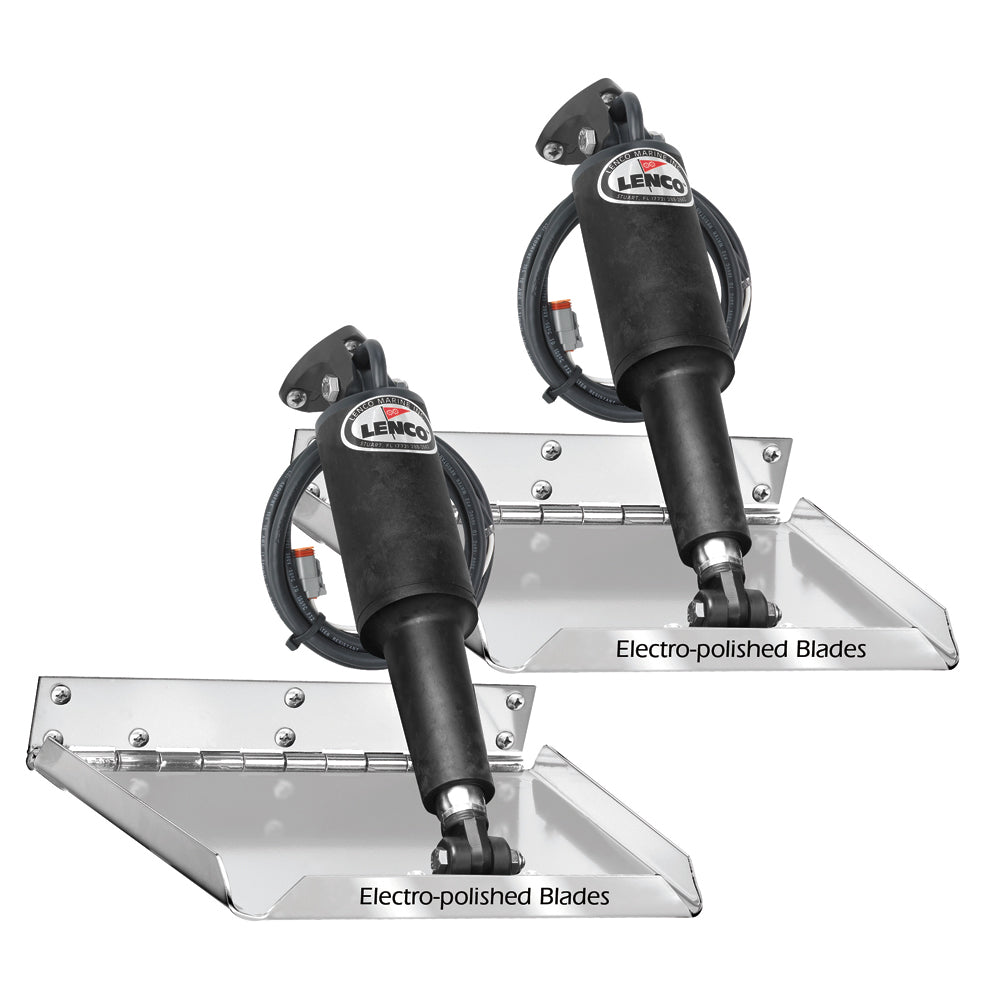

Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades
2 each of 12-gauge stainless steel Electro-Polished trim tab blades
2 each of #15054-001 actuators with 6' lead and Deutsch plugs
2 each of #30133-103 20' actuator extension wiring harnesses
2 each of #15085-001 (#116) upper mounting bracket with gland seal
2 each of #50014-001 (#119) lower mounting bracket
1 each of the Lenco owner’s / installation manual
All necessary stainless steel mounting hardware
Suggested Boat Length: 13' to 20'
Length of Tab: 9"
Width of Tab: 9"
Minimum Transom Height: 13.5"
Blades: 12 Gauge Stainless Steel
Switch Kit: Sold Separately
Class: Fuel Efficient
Compliance: CE Certified
Compatibility: Any Boat
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
