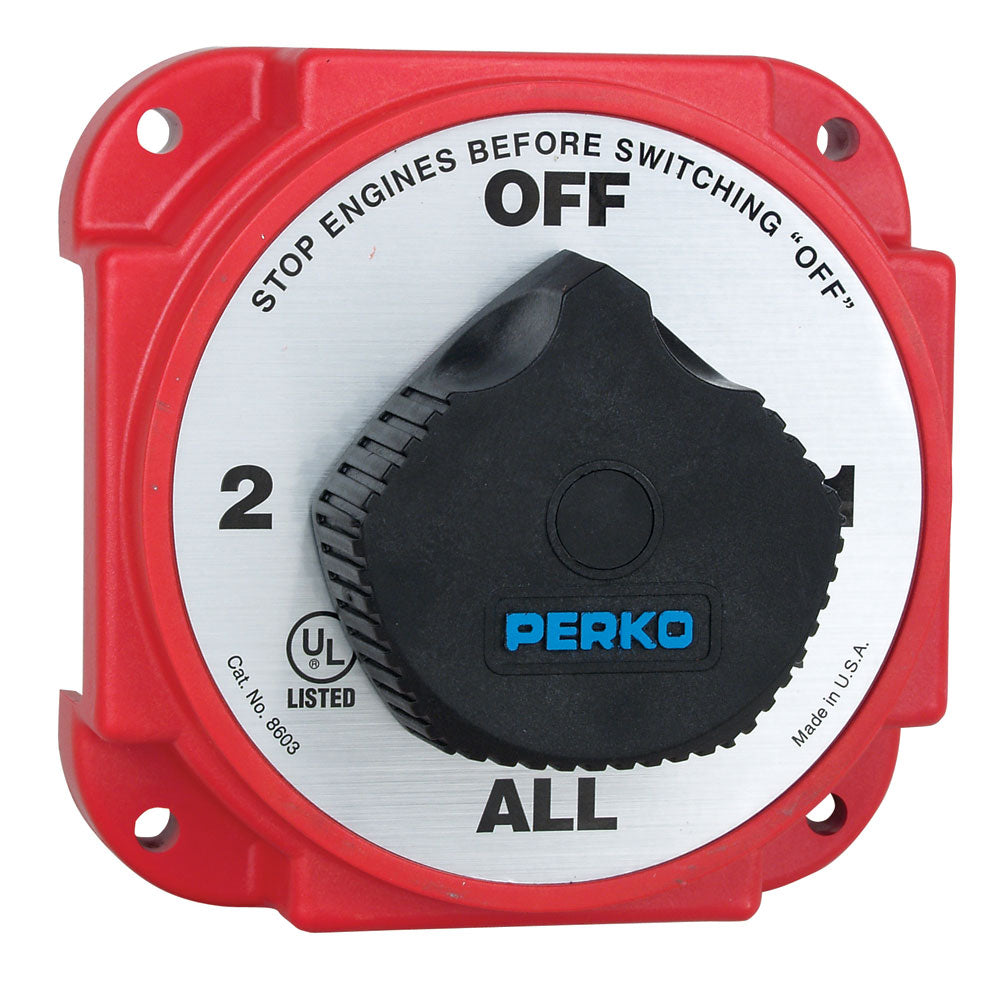

Perko Heavy Duty Battery Selector Switch w/Alternator Field Disconnect [8603DP]

• Diameter: 5-1/4"
• Depth: 2-5/8"
• Polycarbonate Body with Brass Terminals
• Ignition Protected
• For use with 6 to 32 Volt Marine Electrical Systems
• Capacity - 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
• Terminal Stud Size: 5/16"
• When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine running.

Specifications:

• AFD: Yes
• Lockable: No
• Positions: 2
• Continuous Amperage: 380a
• Box Dimensions: 4"H x 4"W x 8"L WT: 2.25 lbs
• UPC: 085226021558
